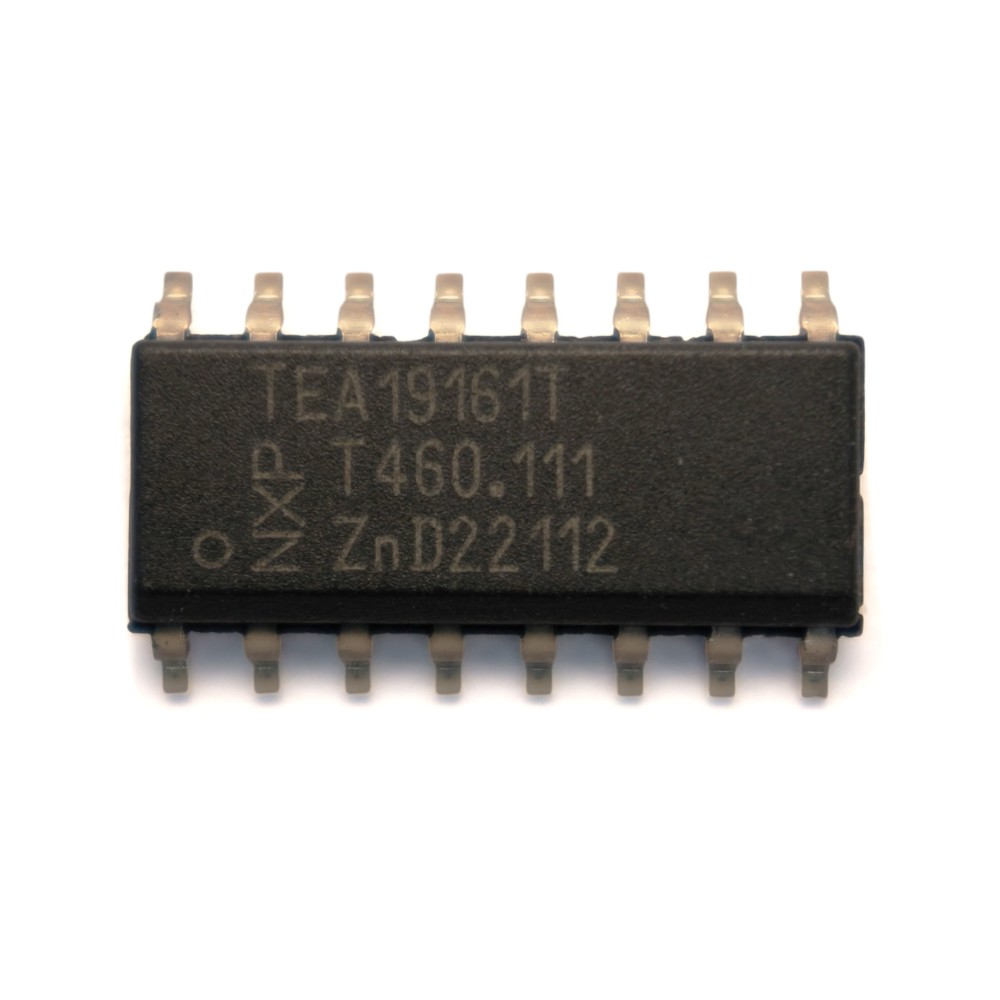

NXP TEA19161T/2Y TEA19161T SO-16 chip Xbox One X power supply


NXP TEA19161T/2Y TEA19161T SO-16 chip Xbox One X power supply

NXP Semiconductor
4D_nxp_TEA19161T/2Y_TEA19161T
New

NXP TEA19161T/2Y is a digital controller for a resonant LLC converter, used in high-efficiency switched-mode power supplies. The chip in a SO-16 / SOT109 package is intended for professional repairs of electronics and power supply sections.

  • Manufacturer: NXP Semiconductors
  • Model: TEA19161T/2Y
  • Type: LLC converter controller
  • Package: SO-16 / SOT109
  • Mounting: SMD
Hurry! only 5 items left in stock.
zł30.00
Delivery in Poland 1-2 business days, in Europe 2-4 days.
Quantity

Add to Compare
Add to Wishlist

NXP TEA19161T/2Y – LLC resonant converter controller SO-16

NXP TEA19161T/2Y is an advanced digital control chip designed to operate in LLC resonant converters. The controller is used in high-efficiency switched-mode power supplies, where it is responsible for proper control of the converter section and its safe operation.

The TEA19161T chip uses digital control allowing optimization of the power supply operation at various load levels. This makes it possible to achieve high energy efficiency and reduce power losses.

Key features of the TEA19161T/2Y chip

  • Manufacturer: NXP Semiconductors
  • Designation: TEA19161T/2Y
  • Model: TEA19161T
  • Chip type: digital resonant controller
  • Topology: LLC
  • Package: SO-16 / SOT109
  • Number of pins: 16
  • Mounting: surface-mount SMD

LLC switched-mode power supply driver

The TEA19161T chip has been designed to control modern power supplies using LLC resonant topology. This solution allows achieving high energy conversion efficiency and stable power supply operation over a wide load range.

The controller can cooperate with chips responsible for power factor correction PFC, among others with the NXP TEA19162T controller.

Protection functions

The TEA19161T is equipped with a number of protection mechanisms that help protect the converter and the electronic components cooperating with it.

  • OCP – overcurrent protection,
  • OVP – overvoltage protection,
  • OLP – feedback loop protection,
  • CMR – capacitive mode operation control.

Service application

NXP TEA19161T/2Y is intended for professional repairs of switched-mode power supplies and devices using a compatible LLC controller. It can be used as a replacement part in case of damage to the original TEA19161T chip.

Before replacement, a thorough diagnosis of the power supply section should be carried out and the other components cooperating with the controller should be checked.

✅ Application:

  • Power supply for Microsoft Xbox One X console

Before purchase, check the designation

Before ordering, compare the full designation of the chip located on the repaired board or in the power supply. We recommend selecting the part based on the designation of the original component and the device documentation.

Note: the chip is intended for SMD mounting. Replacement requires appropriate soldering equipment and experience in professional electronics repair.

: 4D_nxp_TEA19161T/2Y_TEA19161T
: 5 Items
Hurry! only 5 items left in stock.
New

Specific References

EAN13
5903981928774

Please note that shipments outside Poland are currently suspended due to EPR (Extended Producer Responsibility) regulations.

We are currently reviewing the available options and associated costs of expanding international shipping while ensuring compliance with applicable EPR requirements.

We apologize for any inconvenience and appreciate your understanding and patience.

We have three main product condition types in our shop:

1. New - brand new, mostly used for the first assembly, such as integraded chips, data sockets or analogue sticks. Covered by a 24-month warranty (6 months for batteries).

2. Used - the smallest group in our assortment. Fully functional, but we cannot determine their condition. Mostly items that do not breaks down. These group include power supplies for consoles (e.g. 3DS or Xbox 360) or memory cards. Covered by a 6-month warranty.

3. Refurbished renewed, from disassembly - the largest group of products - professionally disassembled, tested for proper operation and, if necessary, refurbished and cleaned. They meet the same quality requirements that the manufacturer sets for all new devices. Key components replaced using original parts (e.g. lasers in disc drives, analogue sticks in controllers). Covered by a 12-month warranty (6 months for batteries).

In cases where the visual aspect is important (e.g. housings), the assortment is divided into 3 additional subgroups:

  • Grade A - perfect condition, products are most often obtained from the dismantling of brand new devices.
  • Grade B - minimal traces of use resulting from a short time of use or repackaging. Warranty exchanges of equipment, 14-day returns, etc.
  • Grade C - goods in generally good condition, with normal traces of use resulting from use.
